FULL AUTOMATIC SCALE MANAGEMENT SYSTEM WITH PLATE DEFINITION FOR WEIGHBRIDGE PRODUCTS

MXBKAN™ PLATE DEFINED WEIGHBRIDGE MANAGEMENT SYSTEM

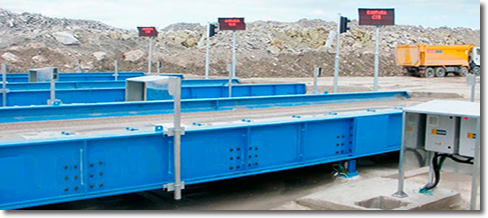

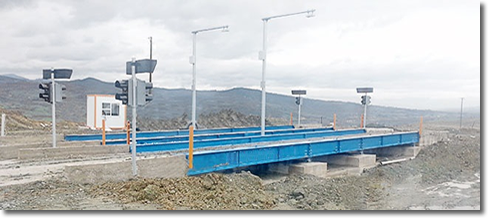

In vehicles with heavy traffic, serial weighing facilities are provided to be automatically recognized and weighed without operator. Since the system is controlled from a single center, personnel errors are eliminated. The system also plays an important role in production, inventory control and sales organization, as it can transfer weighing results to other units in the enterprise. For the recognition of vehicles Automatic plate recognition technology is used.
The operation of the system is provided by the MXBKAN Weigher Management System Software installed on the computer. Thanks to the management of the system from a central computer, in a number of weigher applications, the vehicle entering from any scale can perform the exit from another scale.
It is done with the cameras that are placed in the entry and exit that allow the vehicle to be recognized by the system. When the vehicle enters the scale, the driver reads the camera license plate before getting out of the vehicle and matches it with the information stored in the system. The weighing process of the recognized vehicle is carried out quickly and safely.
At the end of weighing operations, the weighing results of the vehicle are automatically stored in the memory. From the Led Information Display, the driver is directed to the next operation by displaying the Plate, Weighing and other information. If necessary, the thermal printer can automatically print out the weighing slip. After the entry and exit operations, the required records are entered automatically.

GENERAL FEATURES

* 3ms License Plate Recognition Time.
* Special Design 3MP 4mm Lens, 2MP Resolution, 25 FPS, 6 Big Led.
* License Plate Recognition Distance 5 Meters.
* Archiving of Entry - Exist Vehicles License Plate and Vehicle Images.
* MS-SQL Database.
* Unlimited Vehicle Identification (Vehicle License and Information, Company Information, Firm Current Information).
* Weighbridge Communication Interface.
* Empty tare at input, calculating the full difference at the exit and automatic registration to the current account.
* Automatic Delivery of Goods and Information Slip.
* Before Weighing, Plate, Empty Tare and Company Information Display on Led Information Display.

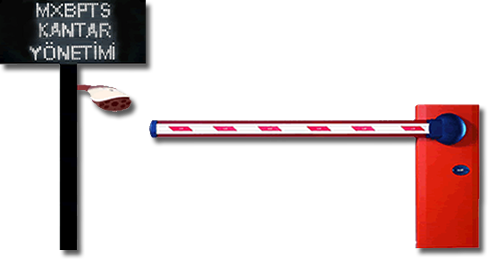

* After Weighing, Automatic Receipt and Barrier Opening.
* Displaying Entry and Exıt the plate and the desired information to TCP / IP 3-Row IP66 Led.
* TCP / IP - 4 Barrier Opening and Closing Feature with USB Trigger.
* Advanced Reporting System.
